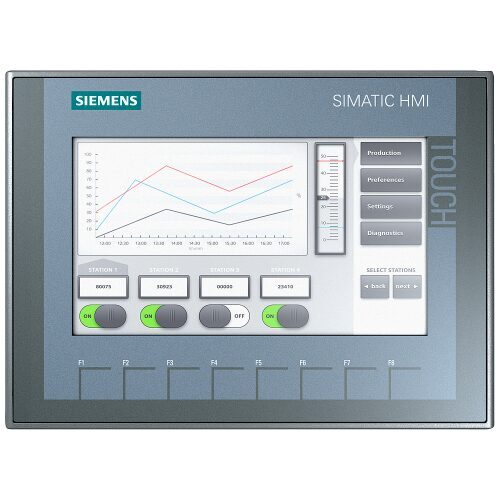

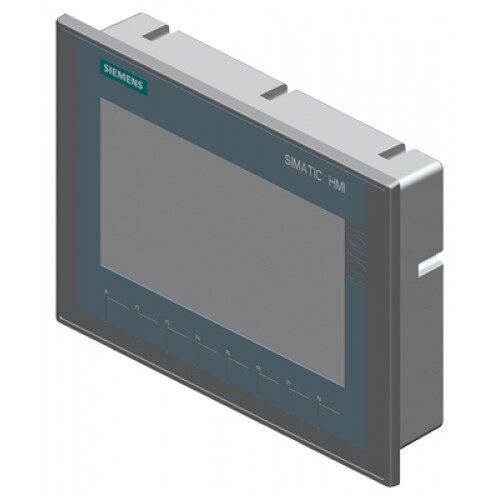

SIMATIC HMI, KTP700 Basic, Basic Panel, Key/touch operation, 7" TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD
Article Number
6AV2123-2GB03-0AX0
SIMATIC HMI, KTP700 BASIC, BASIC PANEL, KEY AND TOUCH OPERATION, 7" TFT DISPLAY, 65536 COLORS, PROFINET INTERFACE, CONFIGURATION FROM WINCC BASIC V13/ STEP7 BASIC V13, CONTAINS OPEN SOURCE SW WHICH IS PROVIDED FREE OF CHARGE FOR DETAILS SEE CD
Product type designation
Display
Design of display
TFT widescreen display, LED backlighting
Screen diagonal
7 in
Display width
154.1 mm
Display height
85.9 mm
Number of colors
65 536
Resolution (pixels)
● Horizontal image resolution
800
● Vertical image resolution
480
Backlighting
● MTBF backlighting (at 25 °C)
20 000 h
● Dimmable backlight
Yes
Control elements
Keyboard
● Number of function keys
8
● Keys with LED
No
● System keys
No
● Numeric/alphabetical input
— Numeric keyboard
Yes; Onscreen keyboard
— Alphanumeric keyboard
Yes; Onscreen keyboard
Touch operation
● Design as touch screen
Yes
Installation type/mounting
Mounting in portrait format possible
Yes
Mounting in landscape format possible
Yes
Supply voltage
Type of supply voltage
24 V DC
Rated value (DC)
24 V
permissible range, lower limit (DC)
19.2 V
permissible range, upper limit (DC)
28.8 V
Input current
Current consumption (rated value)
230 mA
Inrush current A²s
0.2 A²·s
Power
Power consumption, typ.
5.5 W
Memory
Flash
Yes
RAM
Yes
Usable memory for user data
10 Mbyte
Type of output
Acoustics
● Buzzer
Yes
● Speaker
No
Time of day
Clock
● Hardware clock (real-time clock)
Yes
● Software clock
Yes
● Battery-backed
Yes
● Synchronizable
Yes
Interfaces
Number of RS 485 interfaces
0
Number of USB interfaces
1; Up to 16 GB
Number of SD card slots
0
Number of parallel interfaces
0
Number of 20 mA interfaces (TTY)
0
Number of RS 232 interfaces
0
Number of RS 422 interfaces
0
Number of other interfaces
0
With software interfaces
No
Industrial Ethernet
● Number of industrial Ethernet interfaces
1
● Industrial Ethernet status LED
2
Protocols
PROFINET
Yes
PROFINET IO
No
IRT supported
No
PROFIBUS
No
MPI
No
Protocols (Ethernet)
● TCP/IP
Yes
● DHCP
Yes
● SNMP
Yes
● DCP
Yes
● LLDP
Yes
WEB characteristics
● HTTP
No
● HTML
No
Further protocols
● CAN
No
● MODBUS
Yes; Modicon (MODBUS TCP/IP)
● Supports protocol for EtherNet/IP
Yes
Interrupts/diagnostics/status information
Diagnostic messages
● Diagnostic information readable
No
EMC
Emission of radio interference acc. to EN 55 011
● Limit class A, for use in industrial areas
Yes
● Limit class B, for use in residential areas
No
Degree and class of protection
IP (at the front)
65
Enclosure Type 4 at the front
Yes
Enclosure type 4x at the front
Yes
IP (rear)
20
Standards, approvals, certificates
CE mark
Yes
KC approval
Yes
cULus
Yes
RCM (formerly C-TICK)
Yes
Use in hazardous areas
● ATEX Zone 2
No
● ATEX Zone 22
No
● cULus Class I Zone 1
No
● cULus Class I Zone 2, Division 2
No
● FM Class I Division 2
No
Ambient conditions
maximum permissible angle of inclination without external ventilation
